Janisol 2   Custom Steel Fire Rated Swing Door

In a manner unlike almost any other product, Janisol 2 EI30 combines the legal requirements for structural safety with design freedom. The material properties of steel allow extremely slimline steel profiles to be assembled into strong and safe constructions. The result here is multifunctional doors that satisfy the requirements of both the architect and the client. The performance of the system has been internationally confirmed in numerous fire tests. Janisol 2 has been tested in combination with products from many different glass suppliers.

Product details



Materials / surface finishes



  • Uncoated steel or hot-dip galvanized steel strip, suitable for powder-coating or stove-enamelling

  • Stainless steel 1.4401 untreated or polished

Element types

  • Single- and double-leaf doors with and without fixed side panels or transoms

  • Fixed glazing with exposed glass edge

  • Sheet metal clad doors with or without vision panels



Equipment

  • Welded or screw-on hinges in steel or stainless steel

  • Integrated door closers

  • Multipoint locks (motorised also available)

  • Designer glazing frames

  • Emergency locks and panic push-bars



Special technical features



  • Connection to solid wall or lightweight wall construction

  • Dry glazing and wet glazing

  • Central glazing

  • Door heights up to 2.5 m with mortise lock

  • Door heights up to 3.0 m with mortise lock and bimetal strip or with mortise lock with with top retracting bolt



Test certificates

Tested in accordance with EN 1634-1

  • Fire resistance class EI30

  • Smoke protection in accordance with DIN 18095

  • Smoke control tested in accordance with EN 1634-3

  • Emergency exit doors in accordance with EN 1125 / EN 179

  • Burglary protection RC (WK) until 3

  • Airborne sound insulation until Rw 43 dB

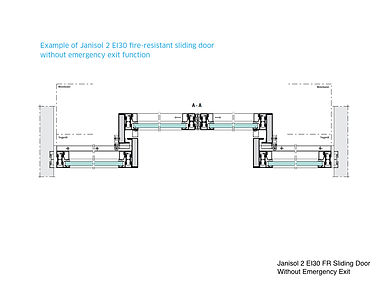

Janisol 2   Custom Steel Fire Rated Sliding Door

The sophisticated fire protection sliding door concept impresses as much by functionality as by aesthetics with its extremely slender frame profiles. Successfully tested in accordance with European fire protection standards, the door profile system ensures the highest safety, even under extreme loads, and offers plenty of design options with a wide choice of drive motors and glass types. The variable Janisol 2 EI30 fire protection sliding doors are mainly used in barrier-free buildings with higher security requirements, such as shopping centres, stadiums and administration buildings. The ultra-slim fire protection profiles make these sliding doors simple to fabricate as single- and double-leaf systems with or without an integrated emergency exit function.

Product details



Materials / surface finishes



  • Uncoated steel or hot-dip galvanised steel strip, suitable for powder-coating or stove-enamelling

Element types

  • Single- and double-leaf doors with and without fixed side panels or transoms

  • With or without integrated emergency exit doors

  • With break-out or break-in function



Equipment

  • Slender face widths

  • Numerous glass types and panels

  • Wide choice of drive motors

  • Integrated door closers, screw-on or welded hinges EN 1125:

  • Panic push-bars, emergency locks EN 179:

  • Panic handles

  • Various security and monitoring options



Special technical features



  • Suitable for installation in standard and low-density (aerated concrete) solid masonry block walls

  • Door sizes without integrated emergency exit doors: 1400x2500 and 2800x2500

  • Door sizes with integrated emergency exit doors: 1250x2500 and 2400x2500

  • For fitting in EI30, EI60, EI90 dividing walls, element size: height until 4040 mm, width 5900 mm (partially endless width)



Test certificates

Tested in accordance with EN 1634-1

  • Fire resistance class EI30

  • Emergency exit doors in accordance with EN 1125 / EN 179

  • Swiss fire protection approvals

Panic Operator

Non - Panic Operator
