Eco 50 / 60   Custom Steel Fire Rated Door

Fire protection doors to class E30 and fixed glass panels up to class E90 can be manufactured quite easily and simply using the popular Economy profiles. Jansen-Economy doors have the same appearance as the Janisol fire protection system components.

Available with IQ Radiant Glass - Providing Thermal Comfort Without Condensation

Product details



Materials / surface finishes



  • Uncoated steel or hot-dip galvanized steel strip, suitable for powder-coating or stove-enamelling

  • Stainless steel 1.4307 and 1.4404 untreated or polished



Element types

  • Single- and double-leaf doors with and without fixed side panels or transoms

  • Fixed glazing



Equipment

  • Welded or screw-on hinges in steel or stainless steel

  • Integrated door closers

  • Multipoint locks (motorised also available)

  • Designer glazing frames

  • Emergency locks and panic push-bars



Special technical features



  • Connection to solid wall or lightweight wall construction

  • Dry glazing and wet glazing

  • Central glazing

  • Door heights up to 2.5 m with mortise lock

  • Door heights up to 3.0 m with mortise lock with top retracting bolt



Test certificates

Tested in accordance with EN 1634-1

  • Fire resistance class E30 for doors and up to E90 for fixed glazing

  • Emergency exit doors in accordance with EN 1125 / EN 179

  • Burglary protection RC (WK) until 3

  • Swiss fire protection approvals

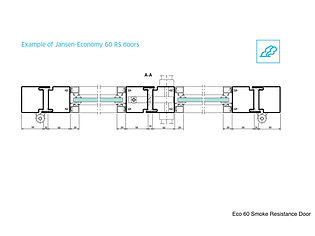

Eco 50 / 60  Custom Steel  Smoke Protected Door

Jansen Economy smoke control systems are ideal for the efficient fabrication of flush smoke control doors. Many different styles and functional variations have been tested and approved.

Product details



Materials / surface finishes



  • Uncoated steel or hot-dip galvanized steel strip, suitable for powder-coating or stove-enamelling

  • Stainless steel 1.4307 and 1.4404 untreated or polished



Element types

  • Single- and double-leaf doors with and without fixed side panels or transoms



Equipment

  • Welded or screw-on hinges in steel or stainless steel

  • Integrated door closers

  • Multipoint locks (motorized also available)

  • Designer glazing frames

  • Emergency locks and panic push-bars



Special technical features



  • Dry glazing and wet glazing

  • Central glazing



Test certificates

  • Smoke protection in accordance with DIN 18095

  • Smoke control tested in accordance with EN 1634-3

  • Emergency exit doors in accordance with EN 1125 / EN 179

  • Burglary protection WK (RC) 1-3
